Garage Door Components: Names, Diagram & How They Work
Your garage door might look simple from the outside—but behind every smooth open and close is a system of carefully balanced parts working together. From the torsion spring to the rollers and sensors, each component plays a critical role in performance, safety, and reliability. When just one piece wears out or gets damaged, the whole system can be affected.

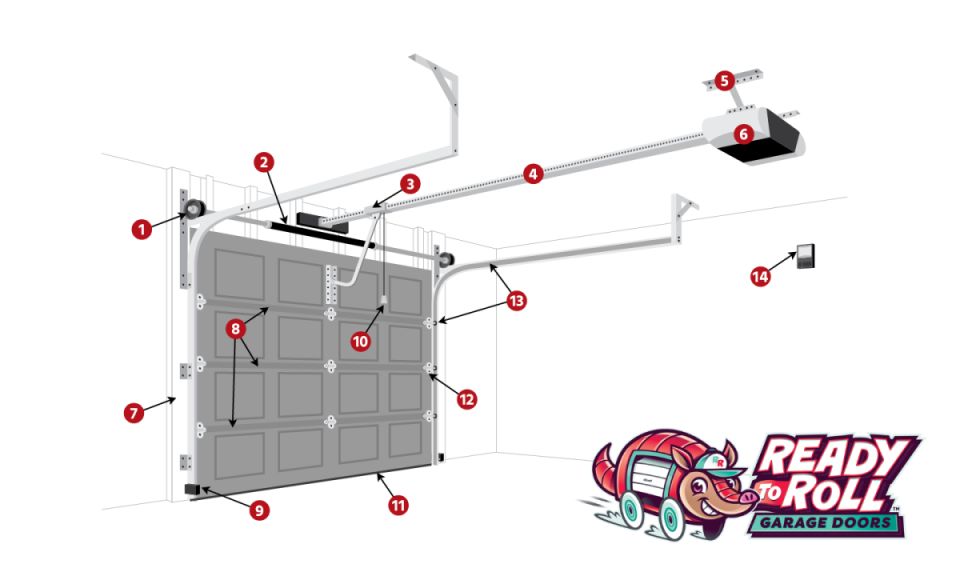

That’s why it pays to understand the key garage door components—and to know the signs when something’s off. Below, you’ll find a detailed garage door parts diagram along with names and explanations of what each piece does. Whether you’re troubleshooting a problem or just want to get familiar with your system, we’ve got you covered.
At Ready To Roll Garage Doors, we’re built on Protection, Peace of Mind, and Pride. If any part of your garage door isn’t rolling the way it should, our experienced techs are here to help.
That’s why it pays to understand the key garage door components—and to know the signs when something’s off. Below, you’ll find a detailed garage door parts diagram along with names and explanations of what each piece does. Whether you’re troubleshooting a problem or just want to get familiar with your system, we’ve got you covered.
At Ready To Roll Garage Doors, we’re built on Protection, Peace of Mind, and Pride. If any part of your garage door isn’t rolling the way it should, our experienced techs are here to help.
Your Garage Door's Components Explained:
Torsion springs do the heavy lifting—literally. Mounted above the door, these tightly wound springs store mechanical energy and counterbalance the full weight of the door. That tension makes it possible for the opener to raise the door with minimal effort and prevents it from slamming shut.
The trolley is the moving connector between the garage door and the opener system. When you press your remote or wall button, the trolley glides along a rail, pulling or pushing the door open and closed. It also includes a release mechanism (usually a red pull cord) that lets you disconnect the door from the opener and operate it manually if needed.
This is the driving force behind your opener. Depending on your system, it may use a rubber belt, a metal chain, or a threaded rod (screw drive) to transfer motion from the motor to the door. Belt drives are typically quieter, while chains are more rugged. Either way, the belt or chain ensures your door opens and closes with precision.
Brackets act like the skeleton’s joints—they anchor critical hardware like the rollers, hinges, and tracks to your garage structure. They help support the weight of the door and absorb some of the forces during movement. Properly installed brackets keep everything aligned and reduce stress on the rest of the system.
The garage door opener—also known as the motor or operator—is what powers your door’s movement. It’s a motorized unit mounted to the ceiling (or wall for jackshaft models) that pulls the trolley along a rail or arm to open and close the door. Controlled by wall switches, remotes, or smart apps, the opener automates the entire process—so you don’t have to lift a finger. When combined with a properly balanced spring system, the motor can lift even the heaviest doors with ease.
Jambs are the vertical sides of the garage door frame and play both a structural and cosmetic role. They support the door’s weight, hold the tracks in place, and provide the anchor points for weatherstripping. Jambs help seal the door against the elements and give the opening a clean, finished appearance—often painted to match the trim or siding for a cohesive look.
Struts are the reinforcement bars running horizontally across the inside of your garage door. They add strength to each panel, helping prevent bending, bowing, or sagging over time—especially on wide or insulated doors. Struts also reduce stress on hinges and rollers, improving the long-term durability of the door system and helping it operate more quietly and smoothly.
These sensors are the unsung heroes of modern garage door safety. Located near the bottom of the door on each side, they send an invisible infrared beam across the opening. If something—like a pet, a bike, or a kid—breaks that beam while the door is closing, the sensors immediately signal the opener to stop or reverse. It’s a crucial safeguard that protects people, pets, and property from injury or damage.
Every garage door opener comes with a manual release—usually a red cord that hangs from the opener rail. Pulling this cord disconnects the motor from the door, allowing you to open or close it by hand. It’s especially important during power outages or mechanical failures, giving you a reliable way to operate the door manually when needed.
Weather stripping forms a protective seal around the edges of your garage door, keeping out unwanted elements like wind, rain, dust, and bugs. Installed along the bottom, sides, and top of the frame, it helps regulate the temperature inside your garage, which can improve energy efficiency and keep your belongings safe from moisture damage. It’s one of the simplest ways to enhance comfort and protection.
Hinges are the connectors between each garage door panel, allowing the sections to flex as the door rolls up along the track. These pivot points are what let your door bend smoothly around the curved portion of the track during operation. Strong, well-installed hinges are key to preventing noise, misalignment, or premature wear.
Rollers and tracks work as a team to guide your garage door open and closed. The tracks form the path—running vertically on the sides and then curving horizontally across the ceiling—while the rollers glide along inside, attached to the edges of each door panel. High-quality rollers (especially nylon or ball-bearing types) help reduce noise and ensure the door moves cleanly without sticking or jerking.
This is your manual control panel for the garage door opener, usually mounted inside the garage near an entry door. With a single press, you can open or close the door—no remote needed. The wall switch is especially handy if remotes go missing or batteries die, and many models now include lock and light controls too.
